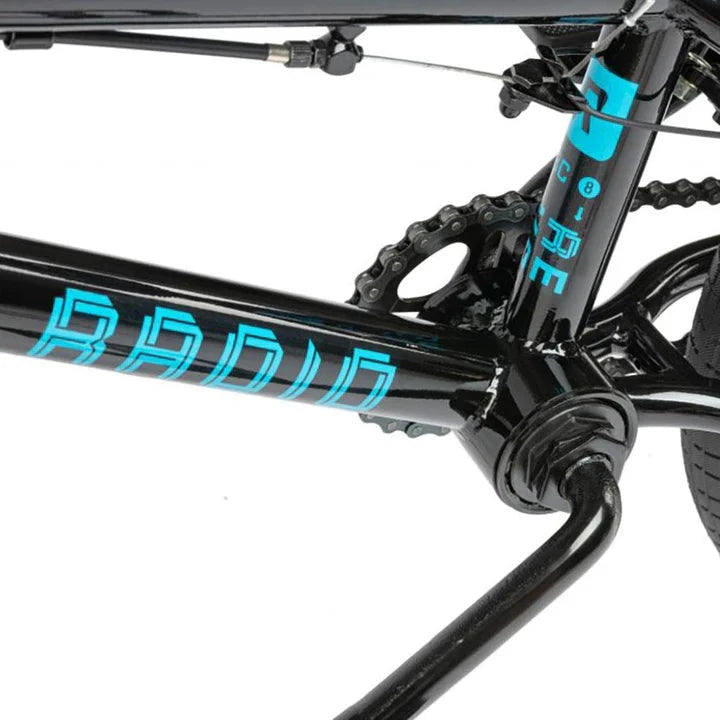

- FRAME: RADIO “REVO 16” frame, full 1020 hi-ten
- FORK: RADIO “ROOKIE 16” fork, hi-ten
- HANDLEBAR: RADIO “REVO 16” bar, hi-ten
- GRIPS: RADIO “JUNIOR” grips, flangeless, 130mm

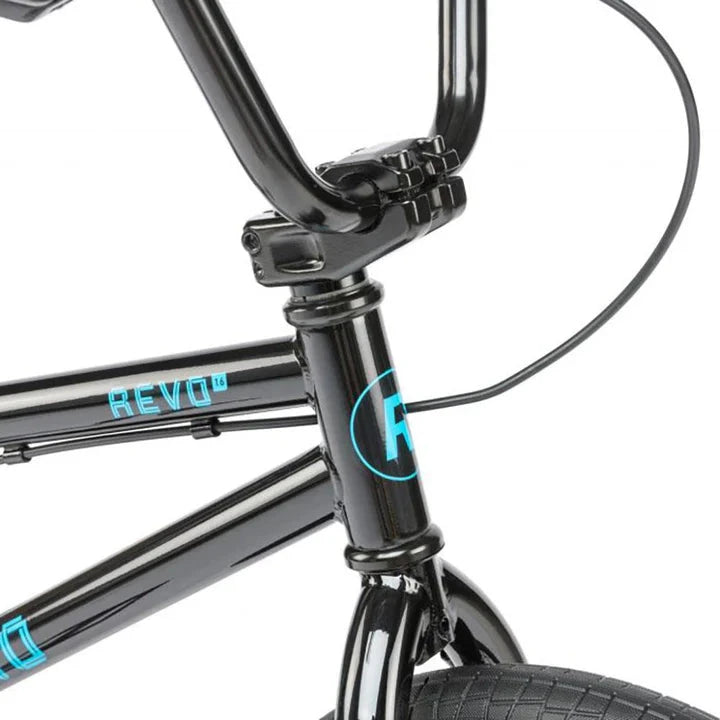

- STEM: SALT “JUNIOR” topload stem, 40mm reach
- HEADSET: FSA “a-head-set” loose ball
- BRAKE LEVER: RADIO “JUNIOR 16” brake lever, alloy
- BRAKE: RADIO “AM” caliper brake, alloy, front / RADIO “AM-U” u-brake, alloy, rear

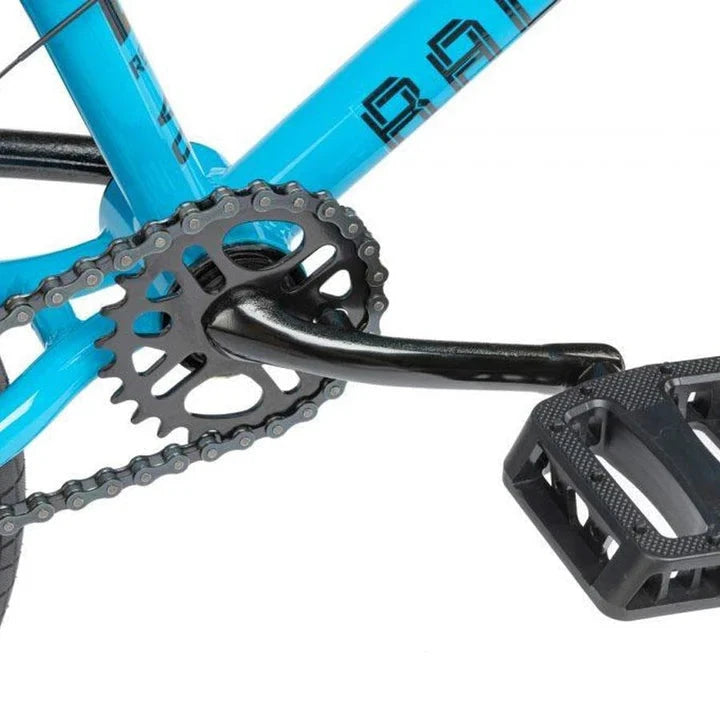

- CRANK: RADIO “ROOKIE” 1pc crank, forged, crmo, 127mm
- BB: USA size, loose ball
- PEDALS: RADIO “Rookie” Nylon Pedals
- CHAIN: KMC “S1” chain
- SPROCKET: RADIO “ROOKIE” sprocket, steel, 25t
- DRIVER: 9t, cassette
- FRONT HUB: RADIO “Rookie” steel hub, lb, 28h

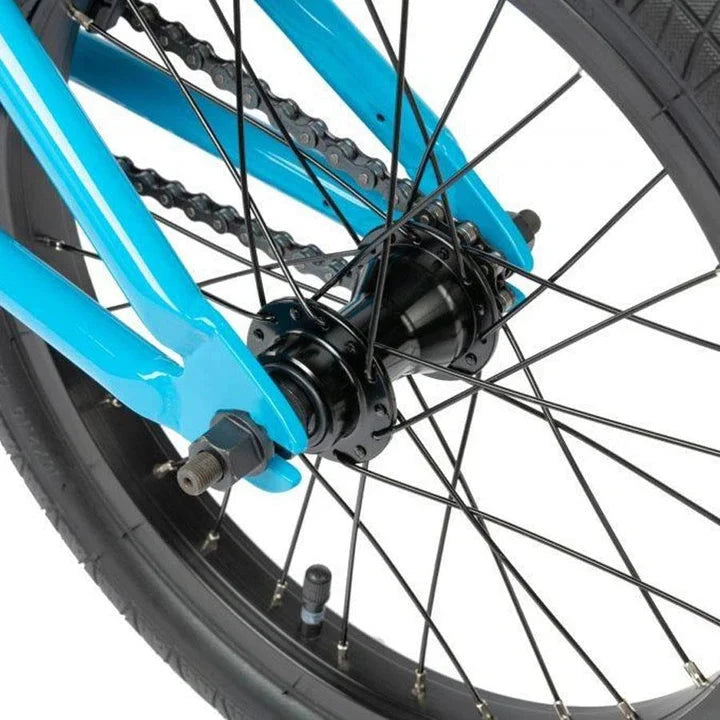

- REAR HUB: RADIO “ROOKIE” cassette hub, steel, lb, 9T, 3/8″ axle, 28h
- FRONT RIM: SALT “AM” rim, straight single wall, 28h
- REAR RIM: SALT “AM” rim, straight single wall, 28h

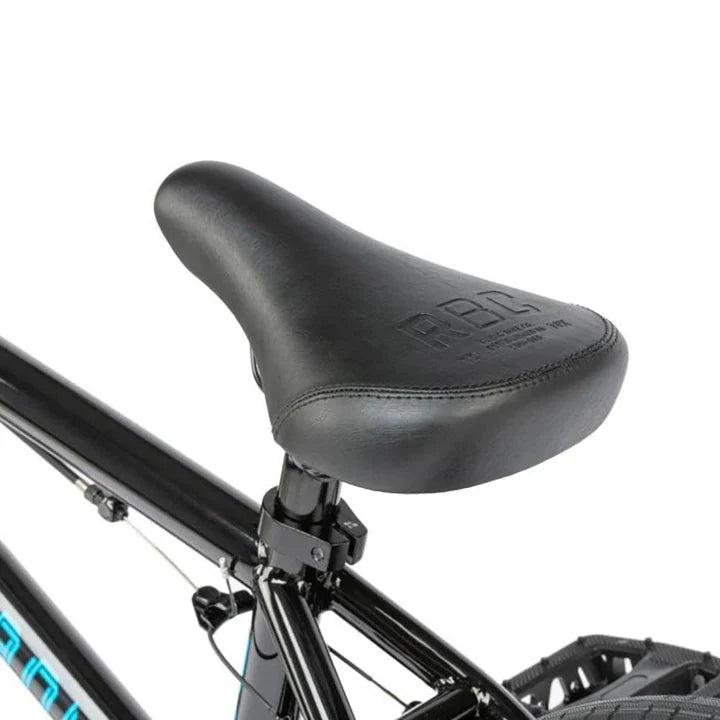

- SEAT: RADIO “Century” railed seat
- SEAT POST: RADIO ‘AM” alloy seatpost
- SEAT CLAMP: RADIO seat clamp, slim, alloy
- TIRES: RADIO “ROOKIE” tires, 16″x2.1″, front & rear
Radio Bikes

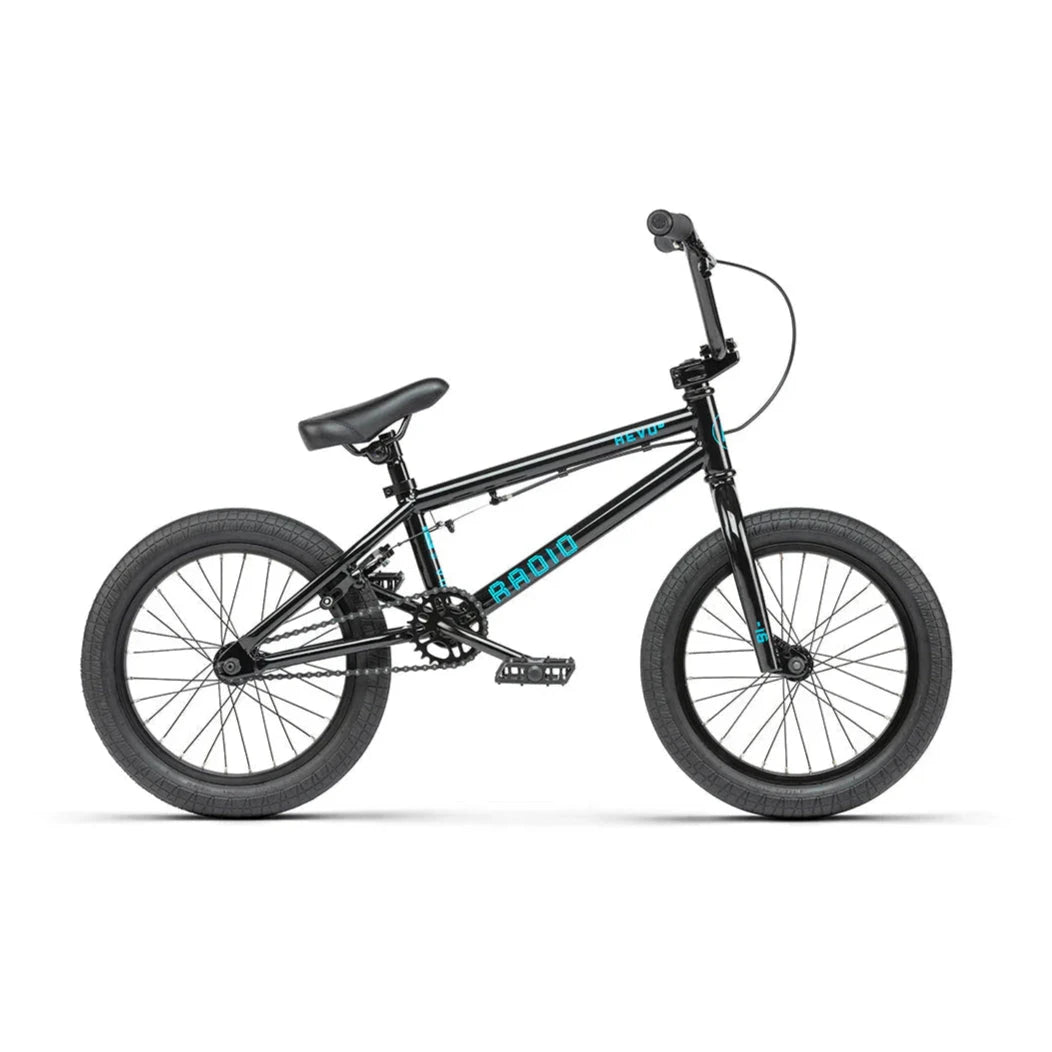

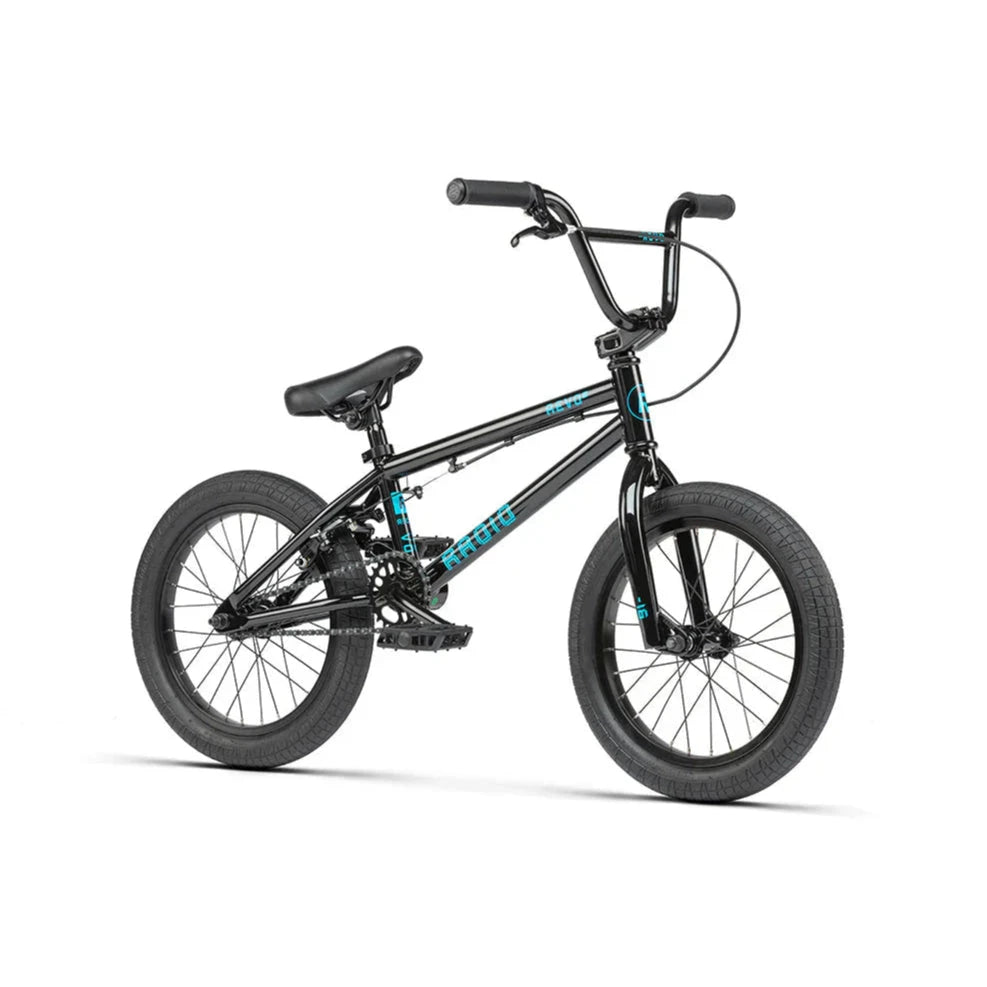

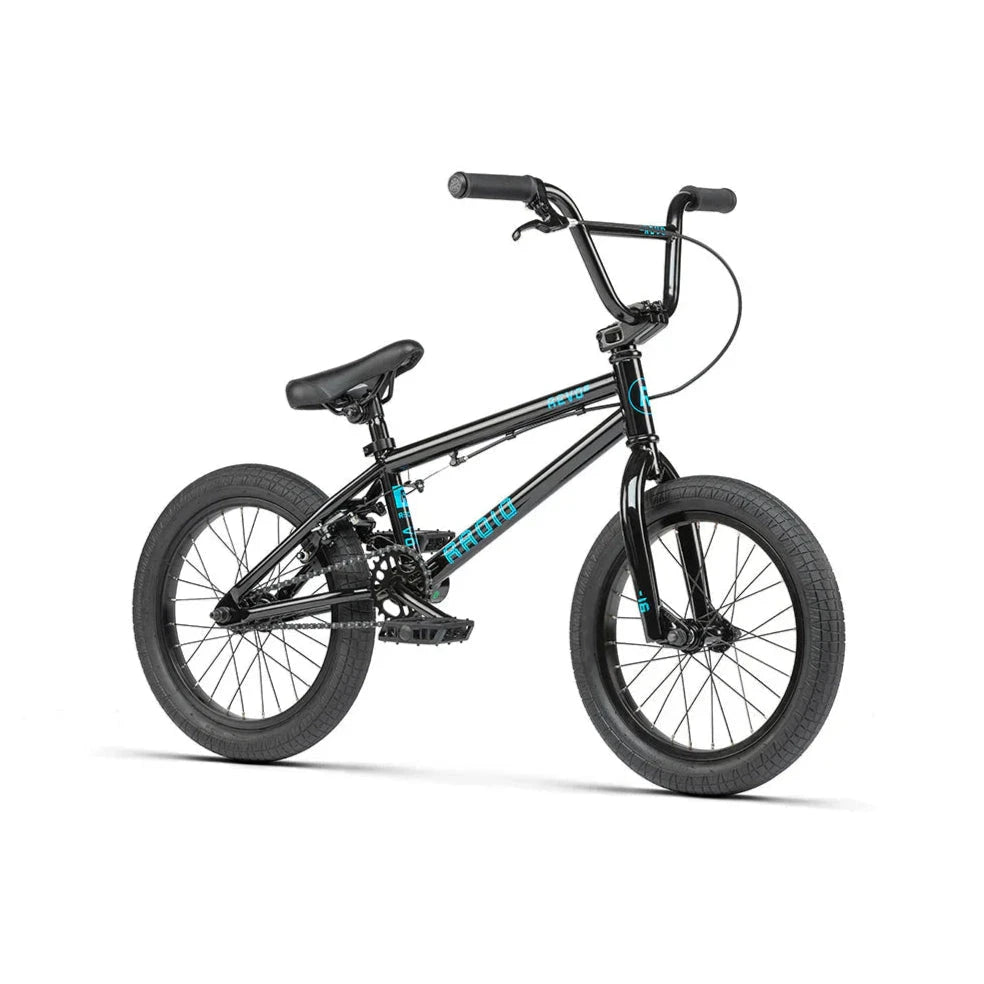

Radio Revo 16" Complete BMX, Black
Radio Revo 16" Complete BMX, Black
Regular price
£349.95 GBP
Regular price
Sale price
£349.95 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
- 30 Day Returns
- FREE Shipping over £150
- Safe Checkout
Couldn't load pickup availability
PLEASE NOTE: For click & collect on all Mafia products, please allow 2-4 working days. All of our complete Bikes are dispatched flatpacked with some assembly required. For the product warranty to be valid, the bike must be assembled by a qualified cycle mechanic. If you wish to collect your bike in-store it will come fully built and ready to ride, completely free of charge!
The Radio Revo 16" is an entry-level BMX designed for younger riders. Known for its scaled-down, beginner-friendly geometry and solid construction, it provides a cost-effective way for kids to get into BMX.
This bike is an excellent choice for:
- Beginners: The Revo 16" is designed specifically for kids who are just starting out in BMX and want a dependable, scaled-down bike to learn on.
- Entry-level freestyle: It is suitable for relaxed riding and mastering basic tricks before moving on to more advanced, aggressive riding.
- Riders on a budget: It offers a solid, well-designed starter bike at a more affordable price point compared to high-end BMX models, while still including pro-inspired geometry.
Features:
Weight: 9.95kg / 21.94lbs
Frame Geometry:
| Top Tube Length | 16" |
| Chain Stay Length | 11.2" |
| Head Tube Angle | 75° |
| Seat Tube Angle | 71.5° |
| Bottom Bracket Height | 9.75" |
| Standover Height | 6.6" |
Handlebar Geometry:
| Rise | 6.8" |
| Width | 23.6" |
| Backsweep | 10° |
| Upsweep | 3° |
Buying Size Guide
| Rider Height (in) | Rider Height (cm ) | Wheel Size (in) | Top Tube Length (in) |
|---|---|---|---|
| 2FT - 3FT | 60 - 90cm | 12" | 11.5" - 13" |
| 2'8" - 3'4" | 80 - 100 cm | 14" | 2.8" - 15" |
| 3FT - 3'8" | 90 - 110cm | 16" | 14.5" - 17" |
| 3'6" - 4'6" | 105 - 135cm | 18" | 17" - 18.5" |
| 4'6" - 5'1" (XS) |
135 - 155cm | 20" | 18" - 20" |
| 4'10" - 5'4" | 147 - 162cm | 20" | 20" - 20.25" (XS - S) |
| 5'2"- 5'8" | 157 - 173cm | 20" | 20" - 20.5" (S - M) |
| 5'6" - 6FT | 165 - 185cm | 20" | 20.25" - 21" (M - L) |
| 6FT + | 180cm + | 20" | 20.75" + (L - XL) |
